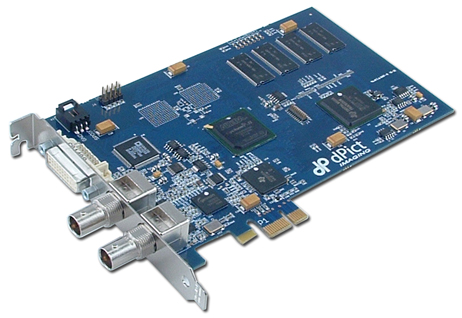

Nexeon HD Xtra

Nexeon HD Xtra is a full-featured video frame grabber for high-definition video display and capture. It supports viewing and capture from high-definition video inputs from SDI, HDTV and VGA display sources. Nexeon HD Xtra has a flexible input interface complete with an HDMI compatible receiver and supports both analog and digital DVI/HDMI standards.

Nexeon HD Xtra Features

  • PCI Express Format
  • Bus-mastering video acquisition
  • HD-SDI input support
  • HDTV support up to 1080p
  • DVI and HDMI input support
  • RGB/YPrPb component input support
  • Simultaneous real-time transfer of video to system memory or display memory
  • TI DM642 Digital Media Processor
  • 64 MB SDRAM Frame Buffer
  • 3G-SDI acquisition rates up to 2.97 Gb/sec
  • HDTV or HDMI acquisition rates up to 150 MHz
  • Auto acquisition of SDI and HDMI inputs
  • Video scaling to arbitrarily sized windows
  • Progressive scan video support
  • Area of interest transfers to system and onboard memory
  • 12-volt DC fused output for camera supply
  • General purpose I/O triggers
  • On-board microcontroller for robust timing and capture
  • Multiple board install support
  • Windows® 10, 8, 7, Vista, and XP drivers
  • Free dPiction Capture Application
  • Optional SDK with sample applications

    •

    Nexeon HD Xtra Description

    PCI Express Support

    Nexeon HD Xtra is designed with the high-speed PCI Express system interface. PCI Express is the high-performance, next-generation interconnect that increases bandwidth,
    scalability, and reliability.

    Bus-Mastering Performance

    Nexeon HD Xtra's high speed bus-mastering capability with scatter gather support delivers realtime video data to system or display memory simultaneously, without intervention from the host CPU. Video data formatting and resolution is independent between streams, allowing for maximum bandwidth flexibility.

    Digital Video Processor

    By incorporating a TI DM642 video processor, Nexeon HD Xtra enables maximum flexibility in handling challenging application requirements. Equipped with a 64 MB SDRAM frame buffer, the video processor provides video scaling, pixel formatting, interrupt support, hardware overlay, and real-time video processing without host CPU assistance.

    3G-SDI Serial Digital Interface

    Nexeon HD Xtra supports viewing and capture of the enhanced video quality from SDI sources. SDI is a broadcast quality video transmission standard that allows for the transmission of un-compressed digital video data on a common coax cable at distances up to 300 feet. Nexeon HD Xtra supports the new 3G-SDI standard, allowing digital video data rates up to 2.97 Gb/sec.

    High-Definition Capture

    Nexeon HD Xtra supports capture and steaming of high-definition video and display. Nexeon HD Xtra supports VGA display resolutions up to 1280x1024 at 75 Hz, as well as HDTV inputs up to 1080p. With acquisition rates up to 150 MHz, Nexeon HD Xtra is one of the most versatile frame grabbers on the market.

    dVeloper Foundation Software Developers Kit

    dVeloper is a comprehensive software developers kit that supports all dPict Imaging products, allowing for easy porting to new hardware. dVeloper is royalty free and runs under Microsoft Windows 10, 8, 7, Vista, XP, and Linux operating systems. Source code samples and complete documentation are included in Visual C, C#, and Visual Basic .NET to provide insight to various hardware functions. Samples include video-in-a-window, overlay, video buffering, camera control, and more.

    dPiction Capture Application

    dPiction is a viewing and capture application for Windows® systems that is included free with any PCI or PCI Express board purchase. It supports video configuration, viewing, and capture for dPict Imaging frame grabbers.

    Specifications

    Form Factor

  • PCI Express x1 connector

    • Video Inputs

  • Serial Digital Input (SDI)
  • RGB/YPrPb component HDTV
  • DVI or HDMI input support

    • HD Video Acquisition

  • 3G-SDI data rate support up to 2.97 Gb/sec
  • HDTV acquisition rates up to 150 MHz
  • Progressive scan video support
  • Supports VGA display capture up to 1280x1024 @ 75 Hz

    • HDTV Standards Support

  • SMPTE 259M: 360 Mb/sec with resolutions up
    to 960x486 (SDI)
  • SMPTE 292M: 1.485 Gb/sec with resolutions
    up to 1080i (HD-SDI)
  • SMPTE 424M: 2.97 Gb/sec with resolutions
    up to 1080p (3G-SDI)
  • HDTV standard up to 1080p (component or
    HDMI digital)

    • Video Formatting

  • Bus-mastering video transfers to system or display memory simultaneously
  • Video scaling to randomly-sized windows
  • 64 MB SDRAM frame buffer
  • RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
  • Area of interest transfers to on-board and system memory
  • Extensive interrupt control for robust capture

    • I/O Triggers and Control

  • 4 general-purpose I/O triggers
  • Triggers programmable as input or output
  • Automatic display mode and sync detection
  • SDI loopthrough output

    • Physical and Environmental

  • 6.00"(length) x 4.20" (height)
  • Operating temperature: 0° C to 70° C
  • Relative humidity: 5% up to 95% non-condensing
  • Two BNC connectors
  • DVI-I Female display connector

    • Ordering Information

  • Nexeon PCI Express: 11052-001
  • dVeloper Foundation SDK for Nexeon HD: 90018

    • More Information

    TI Third Party Network

    dPict Imaging is a proud member of the TI Third Party Network. By working closely with TI we keep up on the latest hardware and software developments, allowing us to provide the best development support possible.
