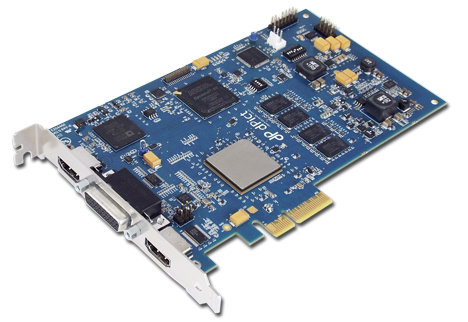

Nexeon HDI

Nexeon HDI is a full-featured video frame grabber for high-definition video display and capture. It supports video inputs from standard and HDTV resolutions up tp 1080p60 as well as VGA display. Nexeon HDI comes equipped with an on-board video codec that supports real-time video recording and playback with audio.

Nexeon HDI Features

  • PCI Express 2.0 4x Interface
  • TI DM8168 Digital Media Processor
  • Bus-mastering video acquisition
  • Simultaneous real-time transfer of video to system memory
  • HDTV support up to 1080p60
  • DVI and HDMI input support
  • Standard definition RGB/YPrPb component, S-Video or Composite video input support
  • Real-time hardware video CODEC
  • H.264, MPEG 4, and MJPEG compression
  • 2 GB SDRAM Frame Buffer
  • HDMI video output
  • Acquisition rates up to 165 MHz
  • Video scaling to arbitrarily sized windows
  • Progressive scan video support
  • Area of interest transfers to system and onboard memory
  • Audio input and recording support
  • General purpose I/O triggers
  • On-board microcontroller for robust timing and capture
  • Multiple board install support
  • Windows® 10, 8, 7, Vista, and XP drivers
  • Free dPiction Capture Application
  • Optional SDK with sample applications

    •

    Nexeon HDI Description

    PCI Express 2.0 Support

    Nexeon HDI is designed with the high-speed PCI Express 2.0 system interface. The second generation interface allows for the Nexeon HDI to transfer data at speeds up to 1GB/sec.

    Bus-Mastering Performance

    By incorporating a TI DM8168 video processor, Nexeon HDI enables maximum flexibility in handling challenging application requirements. Equipped with a 2 GB DDR3 SDRAM frame buffer, the video processor provides video scaling, pixel formatting, interrupt support, hardware overlay, and real-time video processing without host CPU assistance.

    Onboard Video Compression and Playback

    Nexeon HDI comes equipped with a real-time hardware CODEC that enable video recording and playback. It supports multiple compression standards, including H.264, MPEG4 or MJPEG. Compressed and uncompressed video data can be transferred to system memory simultaneously.

    HD and SD Video Capture and Recording with Audio

    Nexeon HDI supports simultaneous capture and steaming both standard definition and high definition video and display with audio. Nexeon HDI supports HDTV inputs up to 1080p60 as well as VGA display inputs with aquisition rates up to 165 MHz. Standard definition support includes composite, S-video and component in NTSC and PAL. Audio inputs can be either digital HDMI or analog stereo.

    Video Output

    Nexeon HDI supports video output of both HD and SD video standards. It can output digital HDMI at resolutions up to 1080p and simultaneous HD or SD analog signals in RGB, S-Video or composite formats.

    dVeloper Foundation Software Developers Kit

    dVeloper is a comprehensive software developers kit that supports all dPict Imaging products, allowing for easy porting to new hardware. dVeloper is royalty free and runs under Microsoft Windows 10, 8, 7, Vista, XP, and Linux operating systems. Source code samples and complete documentation are included in Visual C, C#, and Visual Basic .NET to provide insight to various hardware functions. Samples include video-in-a-window, overlay, video buffering, recording and playback, camera control, and more.

    dPiction Capture Application

    dPiction is a viewing and capture application for Windows® systems that is included free with any PCI or PCI Express board purchase. It supports video configuration, viewing, and capture for dPict Imaging frame grabbers.

    Specifications

    Form Factor

  • PCI Express 2.0 x4 connector
  • Up to 1 GB/sec data transfer

    • Video Inputs

  • Standard or HDTV
  • RGB/YPrPb component, S-Video, and composite
  • DVI or HDMI input support

    • HD Video Acquisition

  • Up to 165 MHz acquisition rates
  • Progressive scan video support
  • HDTV standard support up to 1080p60
  • Supports VGA display capture up to 1600x1200 @ 60 Hz

    • SD Video Acquisition

  • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
  • High-quality 10-bit digitization
  • Square-pixel and CCIR-601 resolution support

    • Video Processing and Formatting

  • Real time onboard video CODEC
  • H.264, MPEG4, and MJPEG compression and playback
  • Simultaneous viewing and capture of standard definition and HDTV video inputs
  • Simultaneous transfer of compressed and uncompressed video
  • Video scaling to randomly-sized windows
  • 2 GB SDRAM frame buffer
  • RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
  • Area of interest transfers to on-board and system memory
  • Extensive interrupt control for robust capture

    • I/O Triggers and Control

  • 4 general-purpose I/O triggers
  • Triggers programmable as input or output
  • Automatic display mode and sync detection
  • Fused 12V DC output

    • Physical and Environmental

  • 5.00"(length) x 4.20" (height)
  • Operating temperature: 0° C to 70° C
  • Relative humidity: 5% up to 95% non-condensing
  • HD-26 Female I/O connector
  • 2 HDMI display connectors

    • Ordering Information

  • Nexeon PCI Express: 11062-001
  • dVeloper Foundation SDK for Nexeon HD: 90018
