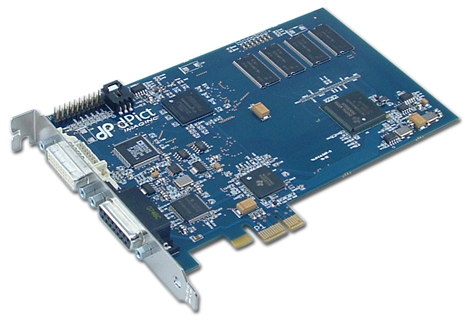

Nexeon HD

Nexeon HD is a full-featured video frame grabber for high-definition video display and capture. It supports video inputs from standard and HDTV resolutions as well as VGA display. Nexeon HD has a flexible input interface complete with an HDMI compatible receiver and supports both analog and digital DVI/HDMI standards.

Nexeon HD Features

  • PCI Express Format
  • Bus-mastering video acquisition
  • HDTV support up to 1080p
  • DVI and HDMI input support
  • Standard definition RGB/YPrPb component, S-Video or Composite video input support
  • Simultaneous real-time transfer of video to system memory or display memory
  • TI DM642 Digital Media Processor
  • 64 MB SDRAM Frame Buffer
  • Acquisition rates up to 150 MHz
  • Video scaling to arbitrarily sized windows
  • Progressive scan video support
  • Area of interest transfers to system and onboard memory
  • 12-volt DC fused output for camera supply
  • General purpose I/O triggers
  • On-board microcontroller for robust timing and capture
  • Multiple board install support
  • Windows® 10, 8, 7, Vista, and XP drivers
  • DirectShow and TWAIN support
  • Free dPiction Capture Application
  • Optional SDK with sample applications

    •

    Nexeon HD Description

    PCI Express Support

    Nexeon HD is designed with the high-speed PCI Express system interface. PCI Express is the high-performance, next-generation interconnect that increases bandwidth, scalability, and reliability.

    Bus-Mastering Performance

    Nexeon HD's high speed bus-mastering capability with scatter gather support delivers realtime video data to system or display memory simultaneously, without intervention from the host CPU. Video data formatting and resolution is independent between streams, allowing for maximum bandwidth flexibility.

    Digital Video Processor

    By incorporating a TI DM642 video processor, Nexeon HD enables maximum flexibility in handling challenging application requirements. Equipped with a 64 MB SDRAM frame buffer, the video processor provides video scaling, pixel formatting, interrupt support, hardware overlay, and real-time video processing without host CPU assistance.

    High-Definition Video Capture

    Nexeon HD supports capture and steaming of high-defi nition video and display. Nexeon HD supports VGA display resolutions up to 1280x1024 at 75 Hz, as well as HDTV inputs up to 1080p. Video can be accepted in either analog or digital through DVI or HDMI connectors. With acquisition rates up to 150 MHz, Nexeon HD is one of the most versatile frame grabbers on the market.

    High-Quality Standard Definition Capture

    Nexeon HD also supports standard defi nition composite, S-Video, or RGB/YCrCb component sources in both NTSC or PAL formats. Nexeon HD provides high-quality 10-bit capture and supports both square-pixel and CCIR-601 video resolutions. Video can be scaled to any arbitrary size.

    dVeloper Foundation Software Developers Kit

    dVeloper is a comprehensive software developers kit that supports all dPict Imaging products, allowing for easy porting to new hardware. dVeloper is royalty free and runs under Microsoft Windows 10, 8, 7, Vista, XP, and Linux operating systems. Source code samples and complete documentation are included in Visual C, C#, and Visual Basic .NET to provide insight to various hardware functions. Samples include video-in-a-window, overlay, video buffering, camera control, and more.

    dPiction Capture Application

    dPiction is a viewing and capture application for Windows® systems that is included free with any PCI or PCI Express board purchase. It supports video configuration, viewing, and capture for dPict Imaging frame grabbers.

    Specifications

    Form Factor

  • PCI Express x1 connector

    • Video Inputs

  • Standard or HDTV
  • RGB/YPrPb component, S-Video, and composite
  • DVI or HDMI input support

    • HD Video Acquisition

  • Up to 150 MHz acquisition rates
  • Progressive scan video support
  • HDTV standard support up to 1080p
  • Supports VGA display capture up to 1280x1024 @ 75 Hz

    • SD Video Acquisition

  • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
  • High-quality 10-bit digitization
  • Square-pixel and CCIR-601 resolution support

    • Video Formatting

  • Bus-mastering video transfers to system or display memory simultaneously
  • Video scaling to randomly-sized windows
  • 64 MB SDRAM frame buffer
  • RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
  • Area of interest transfers to on-board and system memory
  • Extensive interrupt control for robust capture

    • I/O Triggers and Control

  • 4 general-purpose I/O triggers
  • Triggers programmable as input or output
  • Automatic display mode and sync detection
  • Fused 12V DC output

    • Physical and Environmental

  • 5.00"(length) x 4.20" (height)
  • Operating temperature: 0° C to 70° C
  • Relative humidity: 5% up to 95% non-condensing
  • DB-15 Female I/O connector
  • DVI-I Female display connector

    • Ordering Information

  • Nexeon PCI Express: 11042-001
  • dVeloper Foundation SDK for Nexeon HD: 90018

    • More Information

    TI Third Party Network

    dPict Imaging is a proud member of the TI Third Party Network. By working closely with TI we keep up on the latest hardware and software developments, allowing us to provide the best development support possible.
